How to Ensure the Stability of Gabion Basket Structures？

Gabion baskets are box structures made of metal mesh,filled with natural stone or other hard materials,used for river management,slope protection,retaining wall construction,and landscaping projects.Gabion structures are widely used in various projects due to their flexibility,permeability,and ease of construction.However,to ensure the long-term stability of gabion structures,scientific measures must be taken in design,material selection,construction,and post-construction maintenance.This article will detail how to ensure the stability of gabion basket structures.

I.Choosing Suitable Materials

High-Strength Steel Wire Mesh

The main body of a gabion basket is metal mesh,and its strength directly affects the structural stability.High-strength steel wire must not only have good tensile strength but also a certain degree of flexibility to adapt to external pressure or foundation settlement.Flexible steel wire can absorb impact when subjected to localized stress,preventing mesh breakage and thus maintaining overall stability.

Corrosion Protection:Wire mesh exposed to air,water,rain,or high humidity for extended periods is prone to oxidation and corrosion.To extend its service life,wire mesh is typically galvanized or coated with an anti-corrosion layer.Good corrosion resistance not only ensures the wire strength doesn't decrease but also prevents structural instability caused by localized damage.

High-Quality Filling Stones:The stones filling the Gabion Cages are equally crucial to structural stability.Hard,weather-resistant,and uniformly sized natural stones should be selected.The weight of the stones determines the structure's resistance to external forces,while the shape and uniformity of their distribution affect overall stability.Uneven distribution of stones that are too small or too large may lead to surface collapse or stone loss.

II.Scientific Structural Dimension Design

Reasonable Gabion Cage Dimensions:The dimensions of the gabion cages should be designed based on project requirements,slope angles,and water flow conditions.Oversized cages may cause installation difficulties or uneven stone distribution,while undersized cages increase the number of connections,potentially affecting overall stability.Common gabion cage designs need to consider height,width,length,and number of layers to ensure a balanced unit and overall structure.

**Baffle Installation:**Baffles are typically installed inside the gabion cages to divide the large space into multiple smaller units.The function of the baffles is to secure the filling stones,preventing them from shifting during transportation or long-term use,thus maintaining overall stability.The baffles should be firmly connected to the bottom and sides of the gabion cage and kept vertical to enhance the structure's resistance to lateral pressure.

**Interlayer Connection Design:**In multi-layered retaining walls or slope protection projects,interlayer connections are crucial for overall stability.Each layer of gabion should be securely connected to the layer below using wire or fasteners to prevent overall slippage or tilting.The connection method should ensure structural flexibility while ensuring the stability of each layer.

**III.Construction Quality Control:**

**Foundation Treatment:**The stability of a gabion structure primarily depends on the bearing capacity of the foundation.Before construction,the foundation should be leveled,compacted,or have a sand and gravel cushion layer added to ensure that the gabion cages will not sink or tilt under load.When constructing on soft foundations or slopes,a crushed stone cushion layer or lightweight concrete cushion layer can be used for reinforcement.

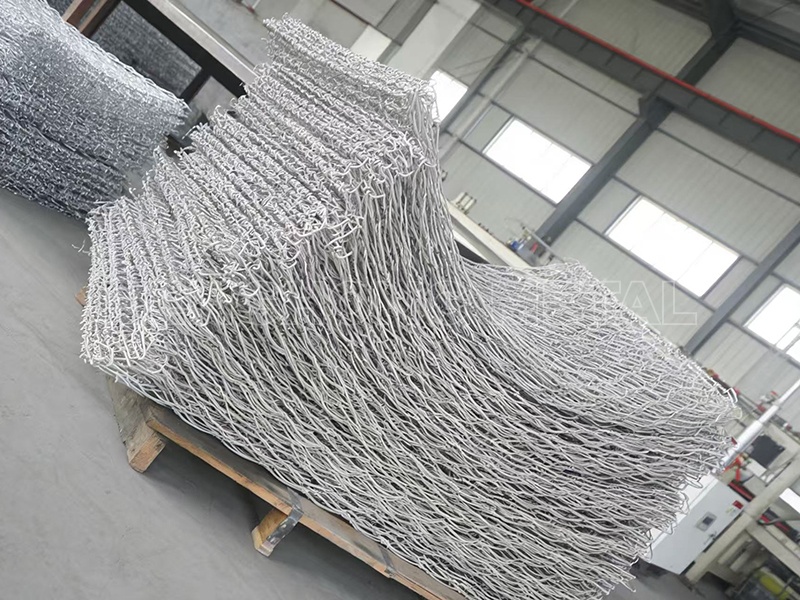

Gabion Assembly and Connection:Gabion cages are usually transported folded to the site and need to be unfolded,assembled,and secured.During construction,ensure the cages are regularly shaped,with neat edges and corners,and are securely connected with steel wire.Weak connections can easily lead to stone spillage or localized deformation,affecting overall stability.

Stone Filling Method:Filling with stones is the core step in ensuring gabion stability.During construction,larger,regularly shaped stones should be filled first on the outside to form a stable surface,followed by the filling of smaller stones inside,ensuring even and dense stone distribution.Filling should be done in layers,with each layer of stones carefully compacted to avoid excessive gaps that could cause deformation.

Top Fixation:After filling,the top mesh should be closed and securely tied to the sides.Top fixing not only prevents stone spillage but also enhances the overall resistance to external forces.Especially in riverbank protection or flood control projects,the top binding must be uniform and tight to withstand water flow impact.IV.Environmental Factor Control

Water Erosion Protection

In river or coastal environments,water erosion is a significant factor affecting the stability of gabions.Larger stones can be placed on the surface of the gabion to disperse the impact of the water flow.Simultaneously,a well-designed drainage system ensures smooth water flow through the gaps between the stones,preventing water pressure buildup that could lead to structural slippage.

Slope Stability

In slope protection projects,the slope soil may slide due to rainfall or geological changes.During construction,attention must be paid to securing the bottom of the gabion to ensure close contact with the slope surface.If necessary,anchor bolts or foundation pads can be installed for reinforcement.

Corrosive Environment Treatment

Gabions in coastal,saline-alkali,or polluted areas are prone to wire corrosion.High-corrosion-resistant wire materials should be selected,and corrosion should be checked regularly.Anti-corrosion coatings should be replenished promptly,or sections of the mesh should be replaced to maintain overall stability.

V.Maintenance and Reinforcement Strategies

Regular Inspection

Gabion structures should be regularly inspected for wire,stones,and connections.Timely detection of loosening,stone loss,or localized deformation issues allows for the extension of the overall service life through localized repairs.

Stone Replenishment:During long-term use,gaps may appear in the stones due to water erosion or settlement.Regular stone replenishment is necessary to maintain a dense internal filling and ensure the gabion's load-bearing capacity and stability.

Wire Reinforcement:For mesh panels with loose or slightly corroded wires,reinforcement or partial replacement is required.This is especially important for multi-layered gabion structures,where the strength of interlayer connections directly affects overall stability.

Vegetation Management:In ecological slope protection or landscape gabions,plant growth should be controlled.Moderate plant growth can enhance structural stability,but excessive root expansion can lead to mesh deformation.Regular pruning and replanting can maintain ecological and structural balance.

VI.Coordination of Construction and Design

The stability of gabion structures depends not only on materials and construction but also on a sound design.The design should fully consider the engineering environment,load conditions,foundation bearing capacity,water flow conditions,and ecological needs.

Structural Rationality:The dimensions,partition layout,number of layers,and interlayer connections of the gabion baskets are designed to ensure they can withstand external loads in the intended use environment.

Environmental Adaptability:In river,coastal,or slope environments,the design must consider water flow impact,salt corrosion,and slope settlement.

Construction Coordination:Construction personnel must strictly adhere to design requirements for assembly,filling,and fixing to prevent localized instability due to construction errors.

Conclusion

The stability of the gabion basket structure is a core indicator of project safety and long-term use.Scientific material selection,rational design,standardized construction,and regular maintenance can effectively ensure the stability of the gabion structure.

High-strength steel wire and anti-corrosion treatment ensure the load-bearing capacity of the baskets;

High-quality stones and partition layout ensure uniform filling;

Rational foundation treatment and construction methods prevent localized settlement and slippage;

Regular inspection and maintenance extend service life;

Environmentally adaptable design enhances the structure's resistance to water flow,slopes,and corrosive environments.

By comprehensively utilizing the above measures,Gabion Basket can operate stably for a long time in various projects such as riverbank protection,slope protection,retaining walls,and landscape construction,giving full play to its advantages in safety,environmental protection,and economy.
